Pallet Racking

1,The structure is simple, safe and reliable, can arbitrarily adjust the combination, the exit and warehouse is not limited by the order of items. It is widely used in the storage mode with tray storage and forklift access.

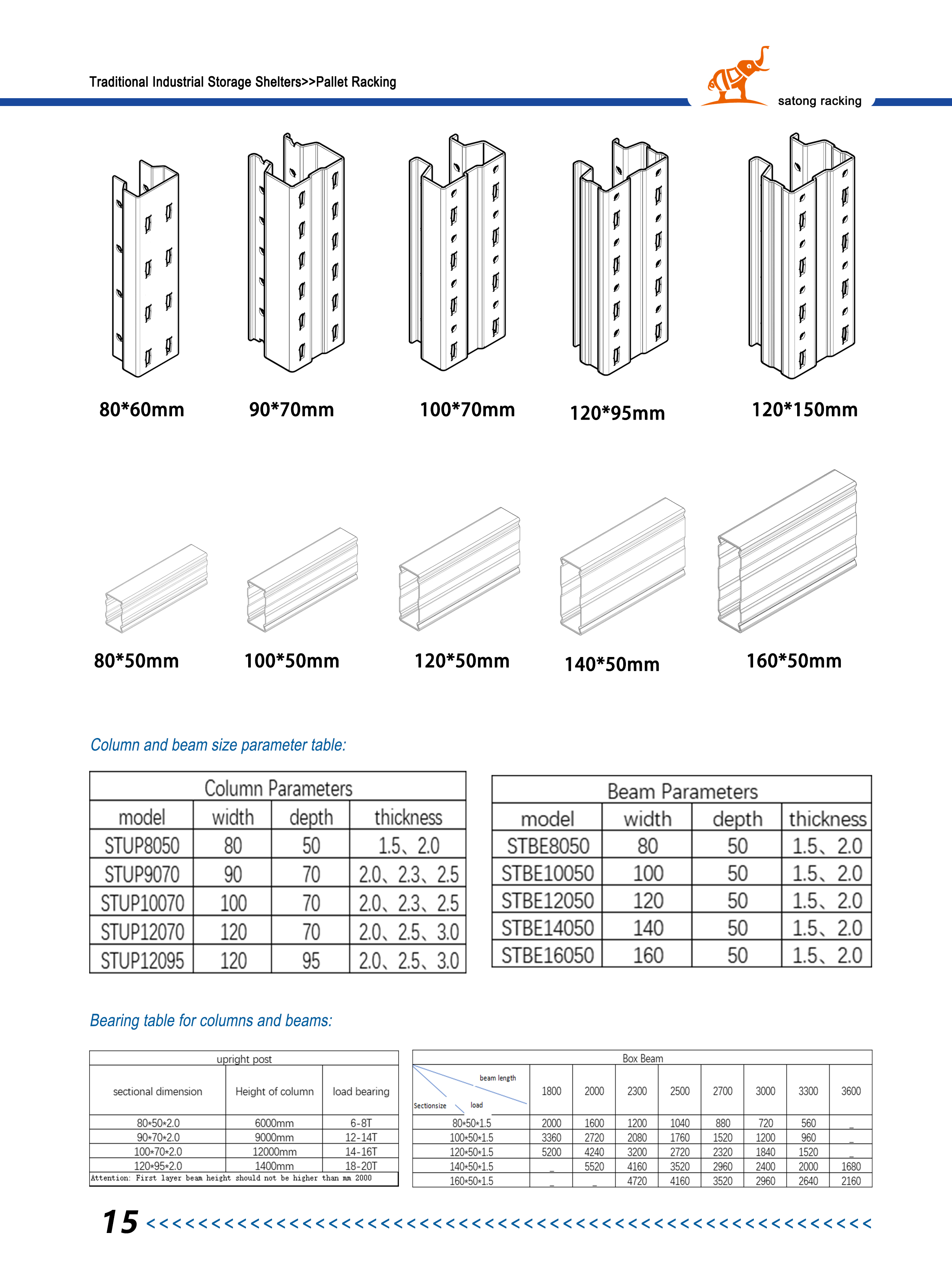

2. column piece by column, cross brace, oblique brace by bolt connection. Column and C type welding beam are inserted to form shelf frame, fixed by safety pin, simple and reliable structure. each layer can be adjusted freely up and down mm 75 or 50 steps.
3. beam shelf is characteristics of large moment of inertia, strong layer load capacity and strong impact resistance. The maximum layer load of each layer can reach 5000kg/ layer under relative design.
4. plastic type is very large, on the basis of tray shelves to build mold shelves, attic shelves, three-dimensional storage shelves can also be made into special oil barrel shelves.
5. beam shelves can effectively improve warehouse storage height and improve warehouse space utilization. Suitable for all types of goods storage.

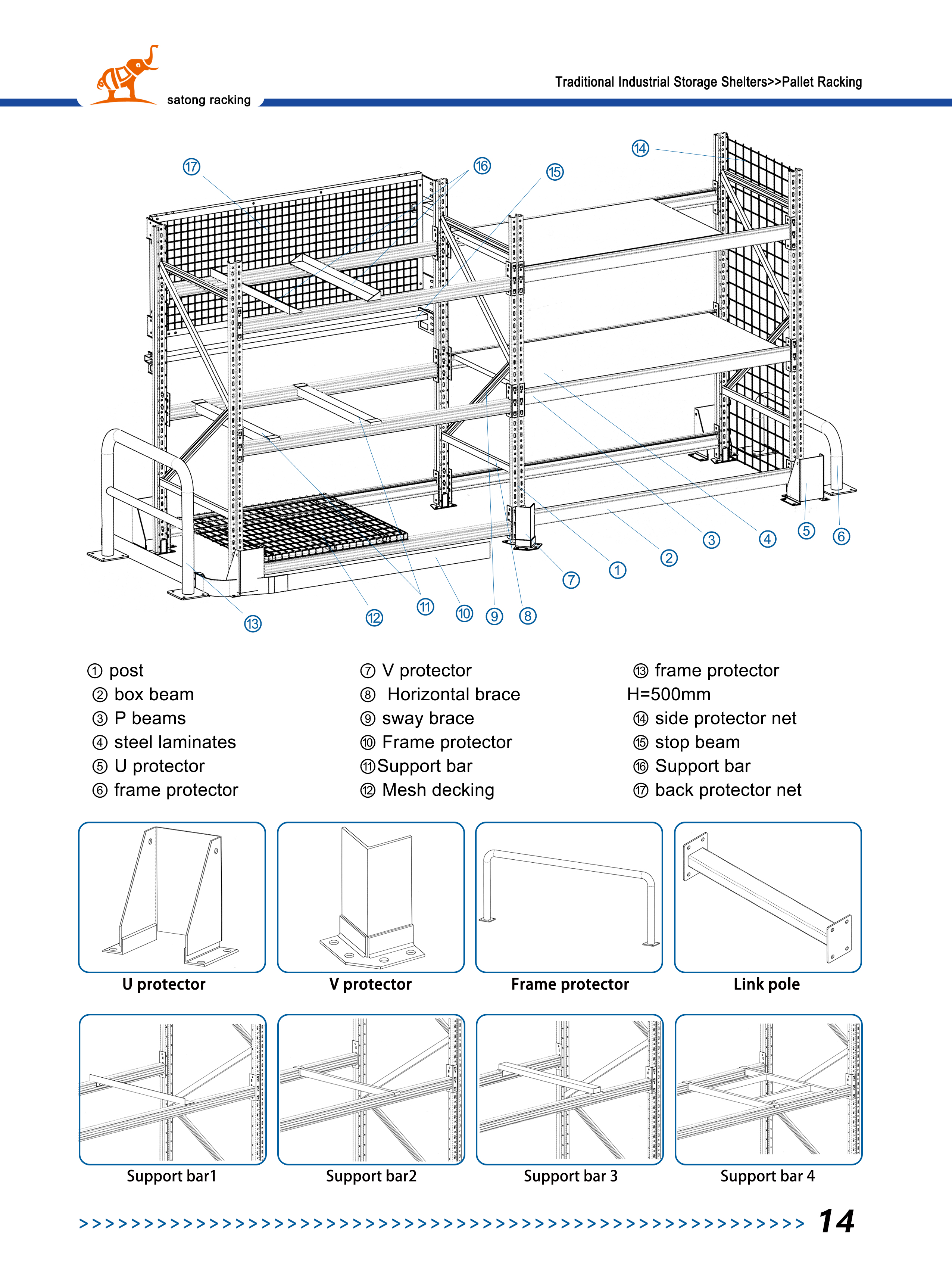

appearance safety, to prevent forklift collision can also increase the column foot protection, anti - collision rod. In order to be more secure in layer load, beam retaining, laminate, mesh span beam and other auxiliary facilities can also be installed on the beam.
7, cost, convenient installation operation, find location is easy to apply for any handling tools.
shelves can also be laminated, can be steel, , ammonia or grid mesh.
